SunFlood 500

SunFlood 500

OXO Sunflood 500 is a multi-chip LED projector with CW calibrated LEDs (@6500K).
Especially designed for applications where powerful fixtures with high efficiency are requested. OXO sunflood 500 is the perfect solution for fair exhibitions & sport events.

Go to download page


  • Specifications

    Light source
    24 x 20W CW LEDs (@ 6500 K)



    Illuminance
    25 000 lux @ 5m



    Optic
    Beam aperture 12°
    CRI >81



    Features
    "Snap" Function allowing the fixture to save and record DMX values (of  the fixture) from the lighting desk  for shows without  controler
    IP20 Protection

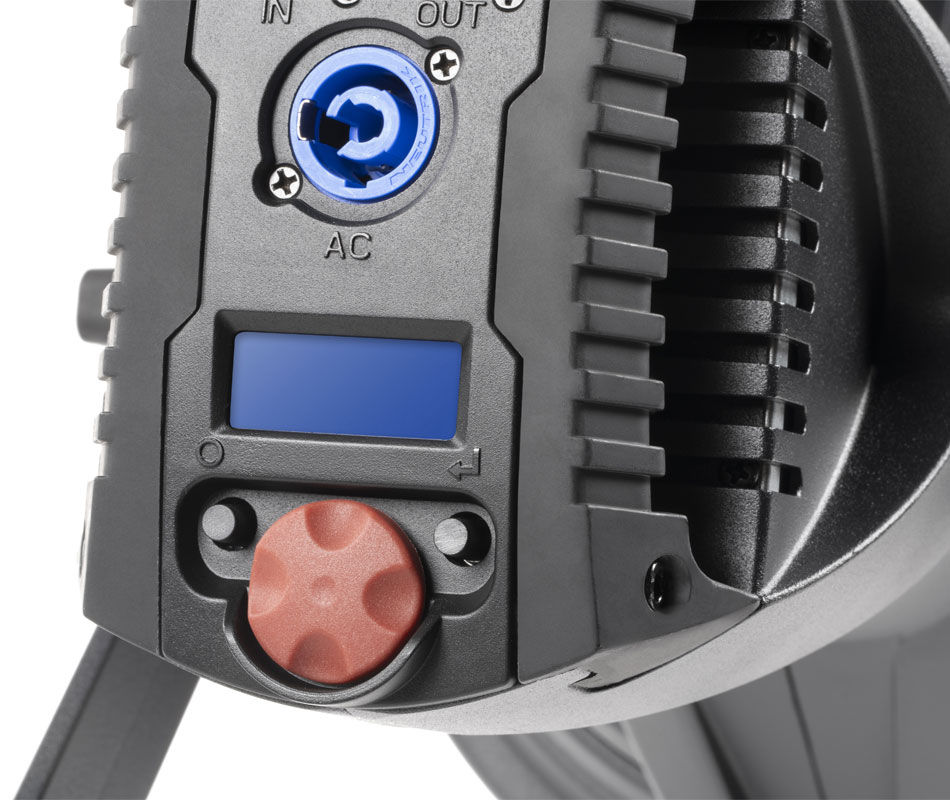

    LCD display with 2 control buttons & 1 coder wheel
    Locking & screen saving mode
    Die cast aluminium



    Control
    DMX512, RDM
    DMX Modes : 2 or 4 channels

    Stand-Alone & Master/slave modes



    Connectors
    DMX XLR5 (In&Out)
    PowerCON (In&Out)



    Power supply
    100-240 VAC, 47-63 Hz



    Power consumption
    460 W @ max



    Dimensions
    304 x 572 x 318 (mm)  (incl. yoke)



    Weight
    11,50 kg

  • Warranty

    2 years
